ITP16 Temperature Indicator - paklinkllc.com

ITP16

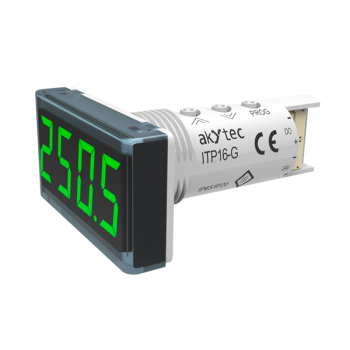

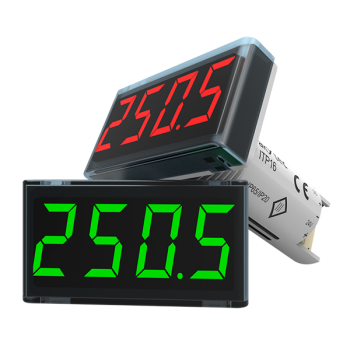

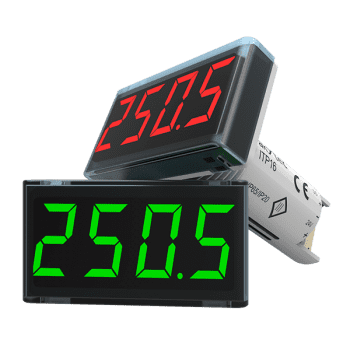

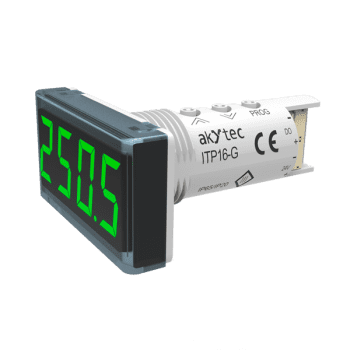

ITP16 Temperature Indicator

The ITP16 is a temperature indicator for monitoring and control of industrial processes. This display features a digital output and a configurable analog input. The device can process linear voltage signals, signals from various RTDs (Pt100, Pt1000, and others) or thermocouples (K, J, and others). The NPN transistor output can control a load up to 200 mA / 42 V DC, which makes it possible to implement on-off control. This output can also be used as an alarm output.

Contact Us for more Information.

Category:
Request For Quotation

Description

ITP16 Temperature Indicator

The ITP16 is a temperature indicator for monitoring and control of industrial processes. This display features a digital output and a configurable analog input. The device can process linear voltage signals, signals from various RTDs (Pt100, Pt1000, and others) or thermocouples (K, J, and others). The NPN transistor output can control a load up to 200 mA / 42 V DC, which makes it possible to implement on-off control. This output can also be used as an alarm output.

Contact Us for more Information.

Technical Data

Specification

  • – Measuring and displaying the signal values received from various RTDs and thermocouples (see Supported sensors)
  • – Linear voltage signal scaling
  • – Adjustable decimal point position
  • – ON/OFF control with an NPN output
  • – Display range -999…+9999
  • – Square root function (for special transmitters)
  • – Digital filter
  • – Alarm function (blinking when the exceeding set points)
  • – Error indication when exceeding the measuring limits
  • – Error indication when wire break or short circuit

Additional Info

This display features a digital output and a configurable analog input. The device can process linear voltage signals, signals from various RTDs (Pt100, Pt1000, and others) or thermocouples (K, J, and others). Before displaying, the input signal can be filtered if needed. There is also an optional square root function available. The NPN transistor output can control a loa

Application

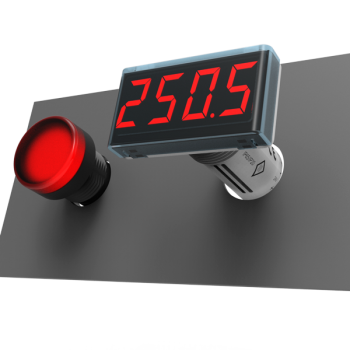

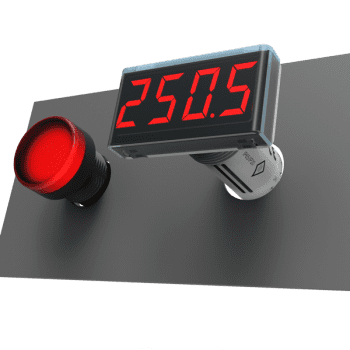

The temperature display ITP16 is particularly suitable for the fast and easy installation of visual display systems for various thermal processes. The ITP16’s compact size ensures that it can be used on-site as an additional display unit for measurement values or as part of a complex visual display system.
