The ITP15 Bar Graph Display is a compact panel-mount process indicator that is intended to visualize an analog input signal in the range from 0 to 100% with 10 bars 10% each. The input signal can be either a linear voltage signal of 0(2)-10 V or a current signal of 0(4)-20 mA.
Contact Us for more Information.
The ITP15 Bar Graph Display is a compact panel-mount process indicator that is intended to visualize an analog input signal in the range from 0 to 100% with 10 bars 10% each. The input signal can be either a linear voltage signal of 0(2)-10 V or a current signal of 0(4)-20 mA.
Contact Us for more Information.
Along with indication, a simple on-off control can be implemented with the NPN transistor output of this bar graph panel meter. This output can control a load of up to 200 mA, 42 VDC.

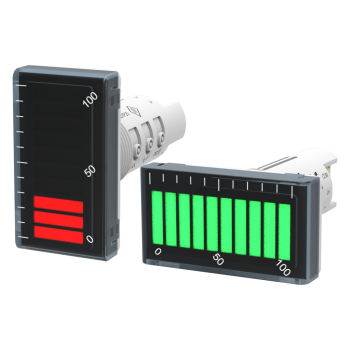

Due to cylindrical form of the mounting part of the enclosure, the device can be positioned either vertically or horizontally without changing the mounting cutout. This bar graph indicator fits into a standard cutout of Ø22.5 mm. The cutouts of this diameter are commonly used for mounting standard signal lamps or push buttons at control cabinets or panels.
