SMI200

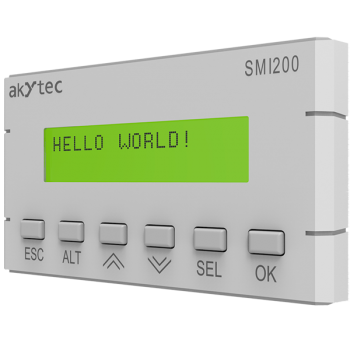

SMI200 Programmable Compact Controller

The SMI200 is a programmable compact controller which can be used either as a compact HMI in addition to a powerful PLC or as a local compact PLC+HMI unit in combination with expansion modules.

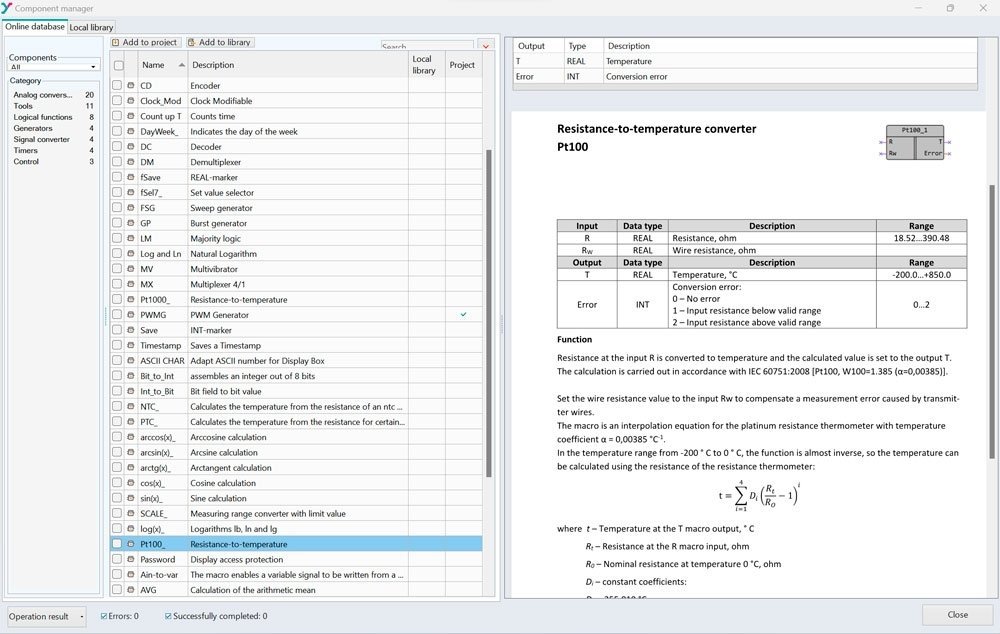

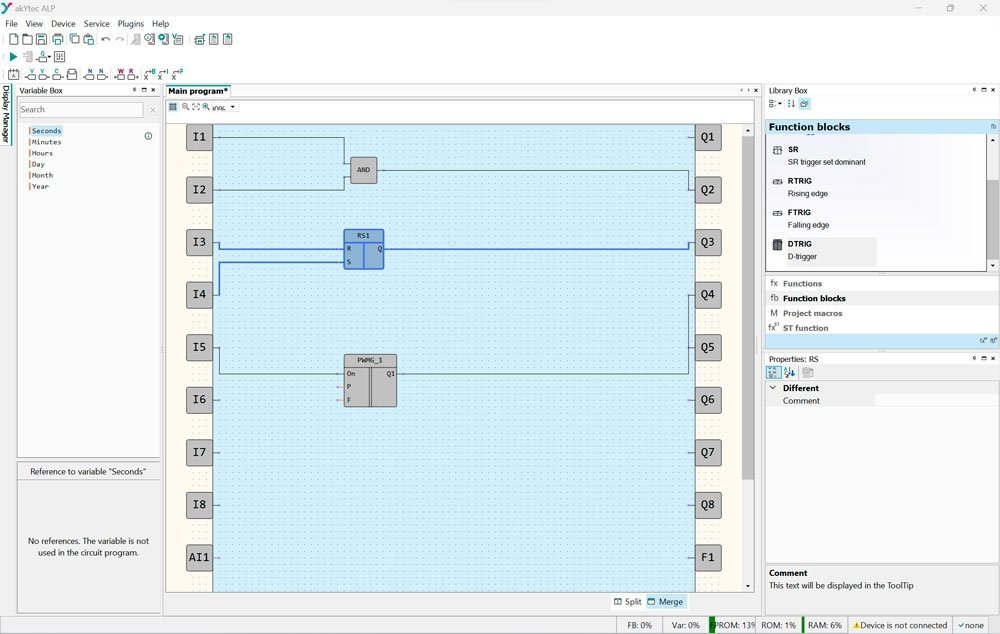

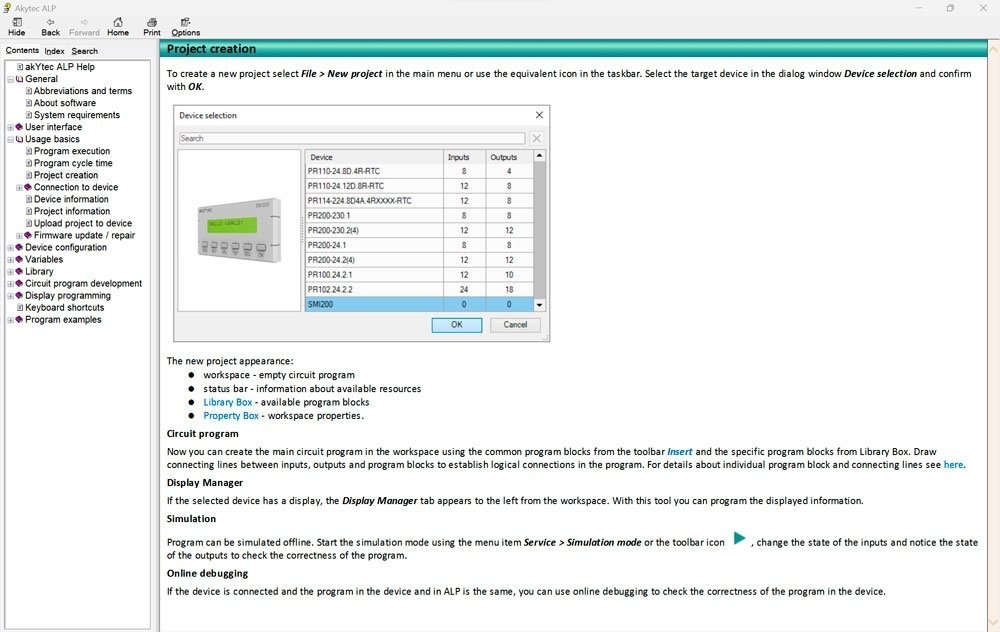

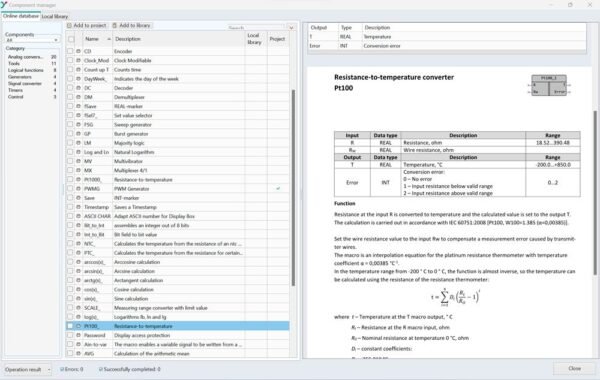

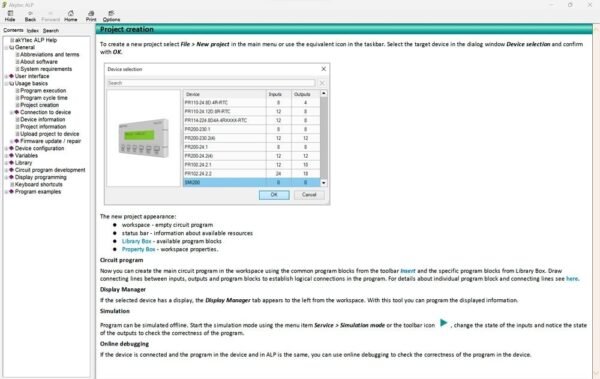

The freely programmable device is equipped with a two-line LCD, a micro-USB interface, and a real-time clock. In a Modbus network, the SMI200 can operate both as a Master and as a Slave. The device programming is carried out using akYtec ALP programming software over micro-USB.

Contact Us for more Information.

Description

SMI200 Programmable Compact Controller

The SMI200 is a programmable compact controller which can be used either as a compact HMI in addition to a powerful PLC or as a local compact PLC+HMI unit in combination with expansion modules.

The freely programmable device is equipped with a two-line LCD, a micro-USB interface, and a real-time clock. In a Modbus network, the SMI200 can operate both as a Master and as a Slave. The device programming is carried out using akYtec ALP programming software over micro-USB.

Contact Us for more Information.

Specification

  • Freely programmable device

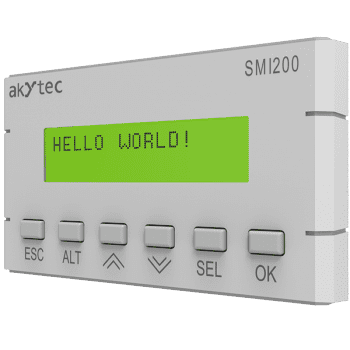

  • 2-line 32-character LCD display
  • Master / Slave in a Modbus network over RS485

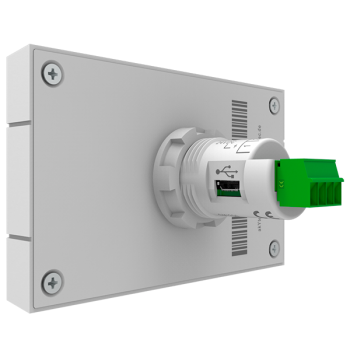

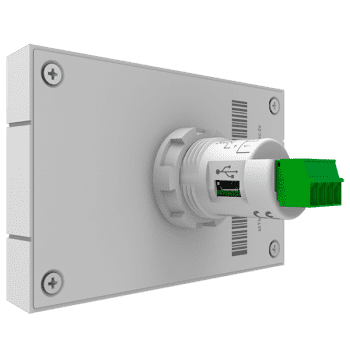

  • Easy mounting in a ø 22.5 mm borehole

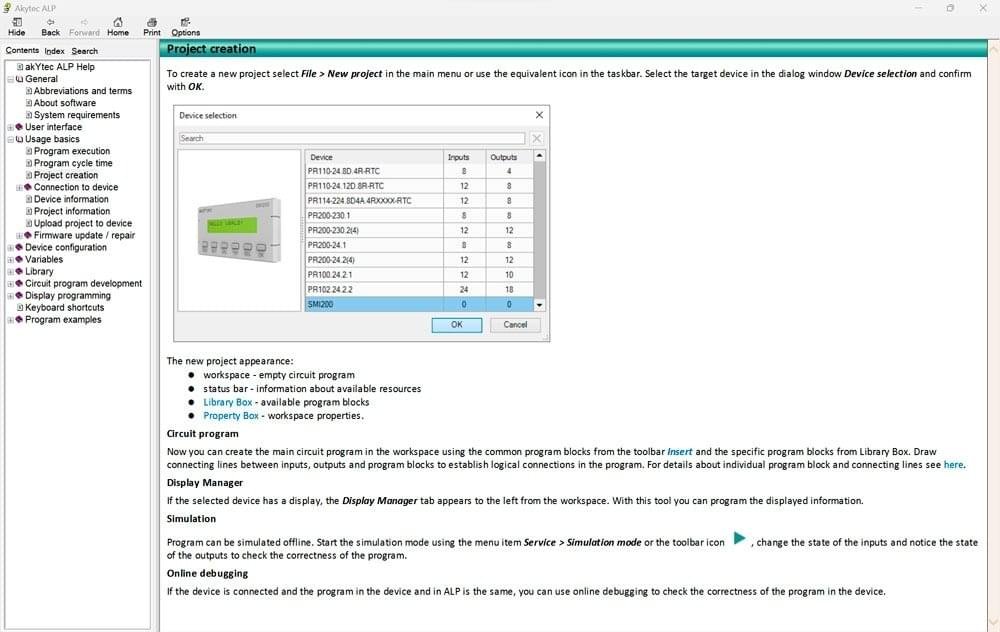

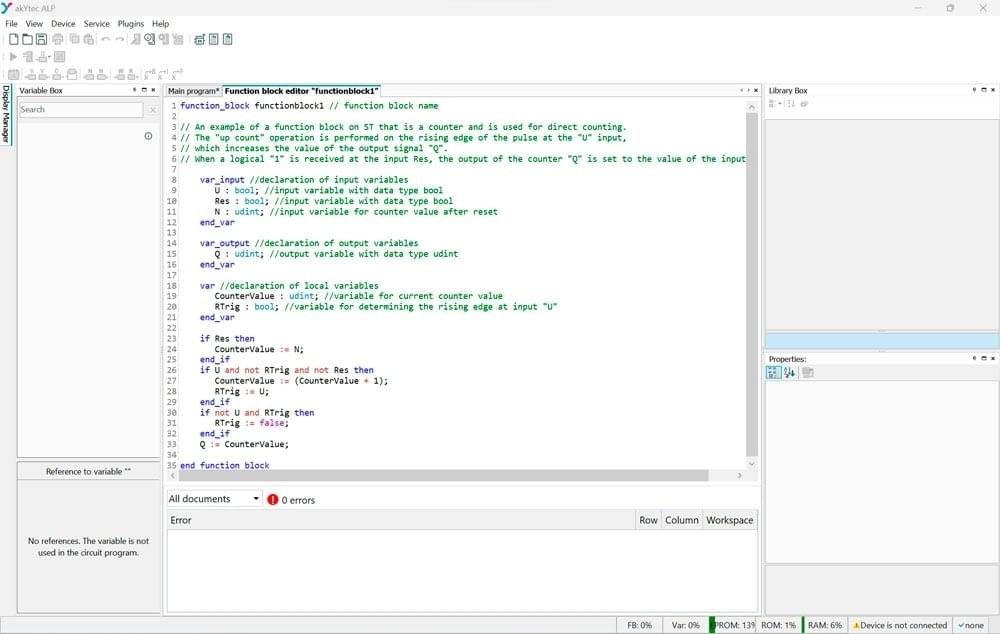

  • Programming software akYtec ALP ( at no charge)
  • Real-time clock

Additional Info

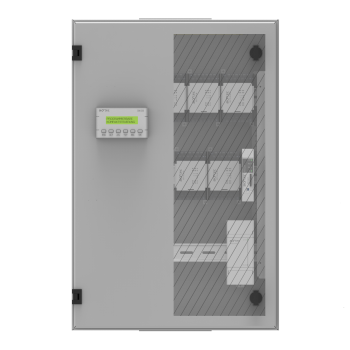

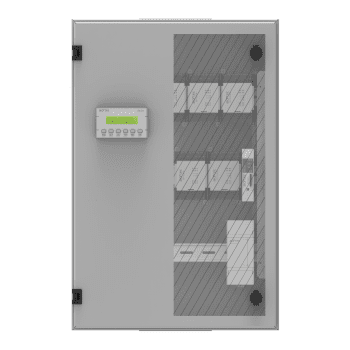

A control system with the SMI200 as the base unit can be expanded if needed. Any required combination of up to 16 I/O modules (e.g., our Mx110 Series) can be connected to the SMI200 over the RS485 interface via Modbus. In this Modbus network, the SMI200 can act as the Master or as a Slave device.

The compact controller lives up to its name with its dimensions: it measures 100×60 millimeters and weighs 150 grams. The freely programmable device is equipped with a two-line LCD, a micro-USB interface, and a real-time clock. The SMI200 enables control and regulation of indoor or outdoor lighting, heating, ventilation, and pumps as well as roller shutters and doors

Application

    • Indoor and outdoor lighting systems
    • HVAC applications
    • Engine control
    • Oven / furnace / kiln control
    • Lifting systems
    • Access control
