MSD200

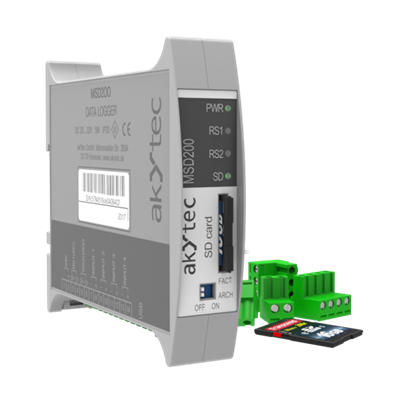

Humidity MSD200 Data Logger

The MSD200 data logger is designed for DIN rail mounting and has two RS485 interfaces. The device supports Modbus RTU and ASCII protocols. 64 channels for data querying and archiving are available. The logger is equipped with four (0)4-20 mA analog inputs. The data are stored on an SD card. The integrated USB port enables data reading and device configuration. Use of the included programming tool makes the configuration and data handling easy and comfortable.

Contact Us for more Information.

Category:

Description

Humidity MSD200 Data Logger

The MSD200 data logger is designed for DIN rail mounting and has two RS485 interfaces. The device supports Modbus RTU and ASCII protocols. 64 channels for data querying and archiving are available. The logger is equipped with four (0)4-20 mA analog inputs. The data are stored on an SD card. The integrated USB port enables data reading and device configuration. Use of the included programming tool makes the configuration and data handling easy and comfortable.

Contact Us for more Information.

Technical Data

Additional Info

  • Archiving up to 64 data measuring points
  • SD cards up to 32 GB
  • 4 analog inputs
  • Automatic archive compilation for several days is possible
  • Express data analysis (extreme values identification)
  • Configurable archive memory
  • Data reading and device configuration via the USB interface

Application

The MSD200 can be used for data archiving in various processes in the food, chemical, gas and packaging industry as well as in the construction materials and wood processing industries. It can be also applied in many other areas of industrial and building automation.
